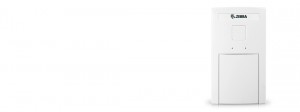

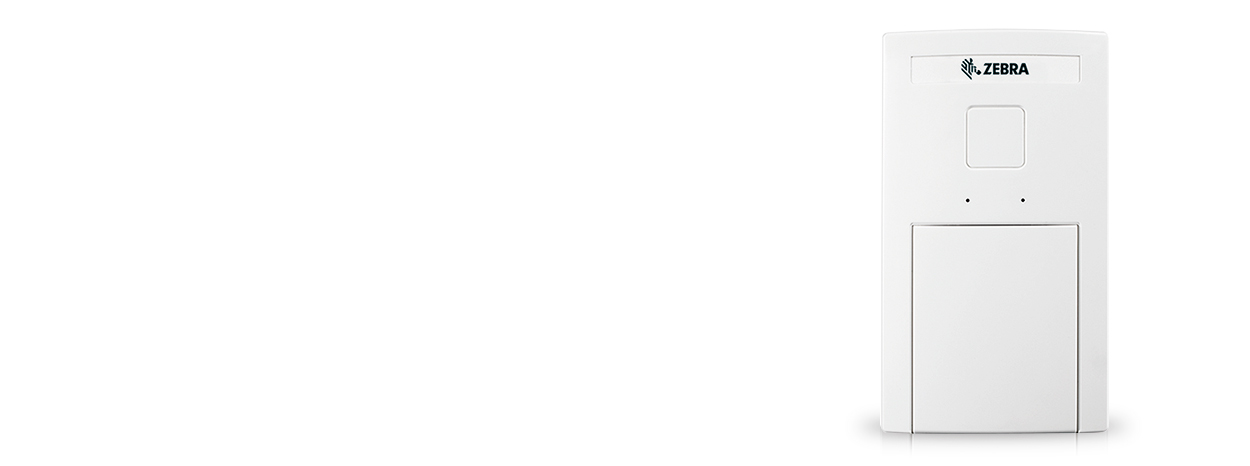

The AP 6511 is expressly designed for one of the most challenging wireless LAN environments – student halls of residence and hotel guest rooms. Standard service personnel can install the AP 6511 in minutes using existing category 5 or 6 cabling already in the walls. The installation is predictable and repeatable – two key reasons why the AP 6511 will dramatically lower the installation time and cost of a room’s wireless LAN. The AP’s sleek “hide in sight” design and minute size match the decor of any room.
The AP 6511 includes intelligent self-optimising controller AP code – enabling a small property to gain the benefits of a central controller – automatic adoption, central configuration and status, as well as automatic RF management, without the cost of a dedicated RF switch. For larger properties and facilities, Zebra’s WiNG-based RF switches can manage the AP 6511, for very high scalability and seamless integration with other indoor and outdoor 802.11n access points.
FULL 802.11N PERFORMANCE WITH STANDARD 802.3AF AND DUAL BAND SUPPORT
Simplify and reduce the total cost of installation using standard Power-over-Ethernet (PoE). Operate in either 2.4Ghz or 5.0Ghz frequency bands to support 802.11b/g/n or 802.11a/n wireless LANs.
ENHANCED MOBILITY AND SECURITY
Support fast, secure roaming and rate scaling. Pre-emptive roaming and load balancing are supported when connected to an RF Switch to increase reliability and network resilience. This unique multi-purpose device can execute and enforce the IDS/IPS security policies configured in the wireless switch, and can also be utilised as a 24×7 dedicated sensor with wireless IPS from AirDefense solutions.
MODULAR INDUSTRIAL DESIGN FOR FLEXIBILITY
The mounting bracket features six unique hole patterns to match most telecom plates worldwide. A keystone, snap-in port provides a fast method to connect any secondary cabling behind the wall to the AP. If the snap-in port is not used for a secondary cable, it can be dedicated as a switched Fast Ethernet port. To further add modularity and flexibility in network design, a three-port Fast Ethernet Module can be field installed via a snap-in access port.
