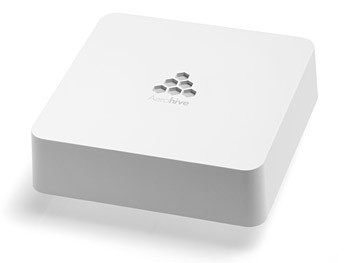

HiveAP 110 802.11n Wireless Access Point

The Aerohive Networks HiveAP 110 is a high-performance, 802.11n, 2×2 MIMO access point with a 10/100/1000 Ethernet port, delivering a data rate of 300Mbps with a single dual-band radio.
The HiveAP 110 is ideal for deployments where a single radio 802.11a/b/g/n solution is sufficient, such as small retail environments, telecommuters, and micro branches. Single radio APs can also be effective in low-capacity environments where the benefits of a second radio are small because there are few clients vying for airtime. The HiveAP 110 can operate in either band – 2.4GHz or 5GHz – providing the opportunity to use the less congested 5GHz band if the clients are all 5GHz capable.

Features & Benefits

  • Flexible environmental support enabling deployment in a variety of environments
  • Plenum rated for indoor, office environments
  • Supports 802.3af Power over Ethernet so deployment does not require access to power outlet
  • Single Radio (a/b/g/n) able to function in a mixed-client environment at either 2.4 or 5 GHz
  • Variety of mounting options including desktop, wall mount, and ceiling tile clips
  • Innovative, low-impact design that blends easily into an office environment
  • Low-distraction indicators appear as a softly glowing logo, rather than brightly blinking lights
  • Trusted Platform Module hardware-based key storage and encryption to ensure physical security
  • Up to 16 SSIDs per radio – enabling network segmentation

Specifications

Mounting
  • Desktop• Wall Mount
  • Ceiling Tile Clips
Physical Security
  • Kensington security lock point
Radios Single Dual-Band Radio (a/b/g/n)
802.11a Radio Specifications

  • 5.150–5.850 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM) Modulation
  • 24 dBm Transmit Power
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 with automatic fallback

802.11b Radio Specifications

  • 2.4–2.5 GHz Operating Frequency
  • Direct-Sequence Spread-Spectrum (DSSS) Modulation
  • 20 dBm Transmit Power
  • Rates (Mbps): 11, 5.5, 2, 1 with automatic fallback

802.11g Radio Specifications

  • 2.4–2.5 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM) Modulation
  • 22 dBm Transmit Power
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 with automatic fallback

802.11n Radio Specifications

  • 2.4–2.5 GHz and 5.150 GHz–5.950 GHz Operating Frequency
  • 802.11n Modulation
  • 24 dBm Transmit Power
  • Rates (Mbps): MCS0 – MCS15 (6.5Mbps–300Mbps)
  • 2×2 Multiple-In, Multiple-Out (MIMO) Radio
  • HT20 and HT40 High-Throughput (HT) Support
  • A-MPDU and A-MSDU Frame Aggregation
Antennas
  • 2x Integrated dual band 2.4-2.5 and 5.1-5.8GHzOmni Directional antennas, 4.0 dBi gain @ 2.4GHz, 2 dBi gain @ 5GHz
Interfaces
  • Autosensing 10/100/1000 Base-T Ethernet Port• Power over Ethernet (PoE) capable (802.3af) Ethernet Port
  • 1x Reset Pinhole
Dimensions(WxHxD)
  • 6.5″ W x 6.5″ H x 2″D(16.51 cm W x 16.51 cm H x 5.08 cm D)
Weight
  • 1.75 lbs (0.8 kg)
Environmental
  • Operating: 0 to +40°C• Storage: -40 to +85°C
  • Humidity: 95%
Environment Compliance
  • UL 2043 (Plenum)
Power Options
  • 802.3af Power over Ethernet (PoE) port• 48v DC external power adapter (sold separately)
Power Specifications
  • AC/DC power adapter:
    • Input:100 – 240 VAC
    • Output: 48V/0.3A
  • PoE nominal input voltages: 48 V, 0.35A (802.3af)
  • Typical power consumption: 7W
  • RJ-45 power input pins: Wires 4, 5, 7, 8 or 1, 2, 3, 6
