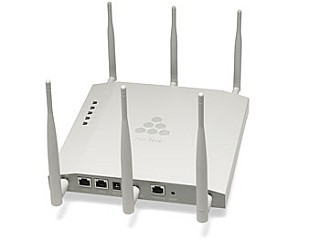

HiveAP 340 802.11n Wireless Access Point

The Aerohive Networks HiveAP 340 access point provides high-performance, dual concurrent (2.4GHz and 5GHz) 802.11n, 3×3 MIMO as well as dual 10/100/1000 Ethernet ports. The HiveAP 340 adds support for redundant power (Power over Ethernet) as well.

Dual Ethernet ports allow the access points to use link aggregation to bond 100Mbps links or ensure reliability with redundant links. This allows the performance advantage of dual radio 802.11n to be seen even when connected through legacy 10/100 switches. When connected to two separate switches, the dual links can be used for redundant data connectivity in case one of the switches fails.

The HiveAP 340 is rated for extended temperature ranges, and designed for locations such as warehouses, industrial environments, distribution centers, and other areas where you would require extended temperature range or the ability to support different antennas.

Features & Benefits

  • Flexible environmental support enabling deployment in a variety of environments
  • Plenum rated for indoor, office environments, and an outdoor enclosure accessory that enables deployment of 802.11n throughout a campus or enterprise deployment
  • Rated for extended temperature range, enabling deployment in warehouses, outdoors, or other settings where temperatures vary
  • Dual Ethernet and Power over Ethernet (PoE) support allows for redundant data and power
  • Supports 802.3af PoE so deployment does not require access to power outlet
  • Dual Concurrent Radios (a/b/g/n) able to function in a mixed client environment at either 2.4 or 5 GHz
  • Variety of mounting options including wall mount, suspended mount, plenum mount, and ceiling tile clips; outdoor accessory has option of pole mount
  • Low-distraction indicators appear as softly glowing color bands, rather than brightly blinking lights
  • Trusted Platform Module hardware-based key storage and encryption to ensure physical security
  • Up to 16 SSIDs per radio – enabling network segmentation

For a simple and cost-effective solution for outdoor enterprise 802.11n deployments, Aerohive offers an outdoor accessory for the HiveAP 340. With internal thermal management, sunshield and NEMA4X water resistance rating, the outdoor enclosure is designed to enable the HiveAP 340 to be deployed in outdoor and harsh indoor environments. The outdoor enclosure features industry standard outdoor Type-N RF connectors and can be installed using flexible wall or pole mounting options.

Specifications

HiveAP 340 HiveAP 340 Outdoor Accessory
Mounting
  • Wall Mount
  • Ceiling Tile Clips
  • Suspended Mount
  • Plenum Mount
  • Wall Mount
  • Pole Mount 1″ to 3.5″ diameter
Physical Security
  • Kensington security lock point
  • Padlock lock point
– Padlockable latch
Radios 802.11a Radio Specifications

  • 5.150–5.950 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing(OFDM) Modulation- 20 dBm (100 mW) Transmit Power
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 with automatic fallback

802.11b Radio Specifications

  • 2.4–2.5 GHz Operating Frequency
  • Direct-Sequence Spread-Spectrum (DSSS) Modulation
  • 20 dBm (100 mW) Transmit Power
  • Rates (Mbps): 11, 5.5, 2, 1 with automatic fallback

802.11g Radio Specifications

  • 2.4–2.5 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM) Modulation
  • 20 dBm (100 mW) Transmit Power
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 with automatic fallback

802.11n Radio Specifications

  • 2.4–2.5 GHz and 5.150 GHz – 5.950 GHz Operating Frequency
  • 802.11n Modulation
  • 20 dBm (100 mW) Transmit Power
  • Rates (Mbps): MCS0 – MCS15 (6.5Mbps – 300Mbps)
  • 2×3, 3×3 Multiple-In, Multiple-Out (MIMO) Radio
  • HT20 and HT40 High-Throughput (HT) Support
  • A-MPDU and A-MSDU Frame Aggregation
802.11a Radio Specifications

  • 5.150–5.950 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing(OFDM) Modulation
  • 20 dBm (100 mW) Transmit Power
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 with automatic fallback

802.11b Radio Specifications

  • 2.4–2.5 GHz Operating Frequency
  • Direct-Sequence Spread-Spectrum (DSSS) Modulation
  • 20 dBm (100 mW) Transmit Power
  • Rates (Mbps): 11, 5.5, 2, 1 with automatic fallback

802.11g Radio Specifications

  • 2.4–2.5 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM) Modulation
  • 20 dBm (100 mW) Transmit Power
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 with automatic fallback

802.11n Radio Specifications

  • 2.4–2.5 GHz and 5.150–5.950 GHz Operating Frequency
  • 802.11n Modulation
  • 20 dBm (100 mW) Transmit Power
  • Rates (Mbps): MCS0 – MCS15 (6.5Mbps – 300Mbps)
  • 2×3, 3×3 Multiple-In, Multiple-Out (MIMO) Radio
  • HT20 and HT40 High-Throughput (HT) Support
  • A-MPDU and A-MSDU Frame Aggregation
Antennas
  • 6x RP-SMA antenna connections for externalantennas
  • 2x N-Type female for external antennas
  • 3dBi outdoor antennas available
Interfaces
  • 2x autosensing 10/100/1000 Base-T EthernetPorts
  • 2x PoE capable (802.3af& pre-802.3at) Ethernet Ports
  • Link Aggregation supported via Etherchannel (link aggregation at 10/100 only)
  • 1x Serial RJ45 port (bits per second:9600, data bits: 8, parity: none, stop bits: 1, flow control:none)
  • 1x Reset Pinhole
  • Autosensing 10/100 Base-T Power overEthernet Port with Lightning Protection(required)
Dimensions(WxHxD)
  • 8.5″ W x 1.25″ H x 8″ D(21.5 cm W x 3.2 cm H x 20.3 cm D)
  • 14.25″ W x 11.5″ H x 5.875″ D(without antennas)
  • 14.25″ W x 11.5″ H x 8.25″ D(with brackets)
Weight
  • 3 lbs (1.36 kg)
  • 12 lbs (includes mounting brackets)
  • 15 lbs (with HiveAP 340)
Environmental
  • Operating: -20 to +55°C
  • Storage: -40 to +80°C
  • Humidity: 95%
  • Operating: -25 to +60°C
  • Storage: -40 to +80°C
  • Humidity: 100%
  • Wind Survivability: >165 mph
Environment Compliance
  • UL 2043
  • NEMA 4X,6P
Power Options
  • Dual 802.3af and/or pre-802.3at PoE ports with Smart PoE intelligent power management.
  • 48v DC external power adapter (sold separately)
  • Passive power over Ethernet
Power Specifications
  • AC/DC power adapter:
    • Input:100 – 240 VAC
    • Output: 48V/0.625A
  • PoE nominal input voltages: 48 V, 0.35A(802.3af) – 48 V, 0.625A (Pre-802.3at)
  • RJ-45 power input pins: Wires 4, 5, 7, 8 or 1, 2, 3, 6
  • 48Vdc @ 0.35A nominal
  • 48Vdc @ 0.40A maximum
