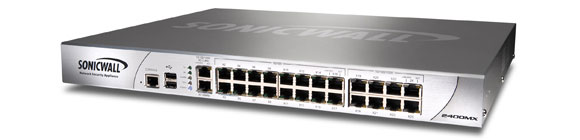

The unique SonicWALL® Network Security Appliance (NSA) 2400MX combines integrated high-performance Unified Threat Management with a powerful and versatile hardware platform for corporate and distributed environments. The NSA 2400MX builds on the NSA 2400 by adding modularity and increased port density to an already successful product
Unified Threat Management.
The NSA 2400MX provides application control, gateway anti-malware, intrusion prevention and Web content filtering on a high performance platform through its unified and simple management interface. This powerful combination ensures state-of-the-art security at a low total cost of ownership.
SonicWALL provides real-time insight and control of network traffic broken down by applications, users and content through intuitive on-board visualization. The ability to prioritize important applications, throttle down unproductive applications and block unwanted application components ensures an efficient and safe network.
The WAN Acceleration Appliance (WXA) Series provides WAN Acceleration to reduce application latency, conserve bandwidth and significantly optimize WAN performance. The WXA Series appliances are provisioned, managed and controlled by existing SonicWALL E-Class Network Security Appliance (NSA), NSA and TZ Series appliances for optimal ease of use and simplified deployment.
Gateway Anti-Malware and Intrusion Prevention.
Gateway anti-virus, anti-spyware and intrusion prevention provide high performance protection against millions of unique pieces of malware with near zero latency and no file size limitation. This provides a first layer of defense and stops malware before it can reach systems on your network.
Virtual Private Networking.
High-performance Virtual Private Networks (VPNs) easily scale to thousands of end points and branch offices. And SonicWALL Clean VPN™ technology protects the integrity of both your IPSec and SSL VPN traffic, securing your remote access tunnels and decontaminating the traffic running over it.
High port density.
With 10 Gigabit Ethernet and 16 Fast Ethernet ports, the NSA 2400MX provides flexibility for installations requiring high port density coupled with robust security. SonicWALL’s innovative PortShield technology allows all 26 ports to easily be segmented into discrete security zones allowing multiple WAN, LAN or DMZ configurations.
SonicWALL Mobile Connect™
SonicWALL® Mobile Connect™, a single unified client app for iOS, provides Apple® iPad®, iPhone®, and iPod touch® users full network-level access to corporate and academic resources over encrypted SSL VPN connections.
SonicWALL’s patented Reassembly-Free Deep Packet Inspection engine combined with the NSA 2400MX’s dual-core security platform is capable of inspecting hundreds of thousands of connections simultaneously across all ports. With nearly zero latency and without file size limitations, the system provides 150 Mbps of Deep Packet Inspection.
|Deep Packet Inspection Firewall||Optional|
|Stateful Packet Inspection Firewall||Standard|
|Unlimited File Size Protection||Standard|
|ICSA Firewall Certified||Standard|
Security Services Included
|Application Intelligence and Control||Optional|
|Gateway Anti-Virus and Anti-Spyware||Optional|
|Enforced Client Anti-Virus and Anti-Spyware||Optional|
|Content & URL Filtering (CFS)||Optional|
|Comprehensive Anti-Spam Service||Optional|
|SSL Inspection (DPI-SSL)||n/a|
|Dynamic Support 8×5||90 Days|
|Dynamic Support 24×7||Optional|
|Interfaces||(16) 10/100, (10) 10/100/1000 Copper Gigabit Ports, 1 Console Interface, 2 USB, 2 Module Slots (For Future Use)|
|Management||CLI, SSH, GUI, GMS|
|Certifications||EAL4+, FIPS 140-2, VPNC, ICSA Firewall 4.1|
|Flash Memory||512 MB|
|Site-to-Site VPN Tunnels||75|
|Global VPN Clients (Maximum)||10 (250)|
|SSL VPN NetExtender Clients (Maximum)||2 (25)|
|Unique Malware Threats Blocked||1,000,000+|
|Virtual Assist Technicians (Maximum)||1 (5)|
|Stateful Throughput||775 Mbps|
|DPI Performance||150 Mbps|
|Gateway Anti-Virus Throughput||160 Mbps|
|Intrusion Prevention Throughput||275 Mbps|
|IMIX Performance||235 Mbps|
|3DES/AES VPN Throughput||300 Mbps|
|Maximum UTM Connections||125000|
|New Connections per Second||4000|
|Logging||IPFIX, Netflow, Analyzer, Local Log, Syslog|
|Network Traffic Visualization||Standard|
|Authentication||XAUTH/ RADIUS, Active Directory, SSO, LDAP, Terminal Services, Citrix, Internal User Database|
|Voice over IP (VoIP) Security||Standard|
|Dynamic Routing||OSPF, RIP|
|Dynamic Bandwidth Management||Standard|
|802.11n Wireless Support via SonicPoints||Standard|
|Integrated Wireless Switch & Controller||Standard|
|Layer 2 Wireless Bridging||Standard|
|Stateful High Availability||Standard|
|Inbound Load Balancing||Standard|
|Terminal Services Authentication/Citrix Support||Standard|
|Onboard Quality of Service (QoS)||Standard|
|Hardware Failover||Optional Active/ Passive with State Sync|
|Analog Modem Failover||Standard|
|3G Cellular Modem Failover||Standard|
