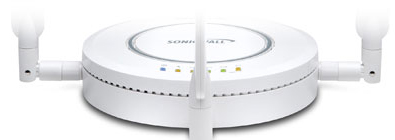

SonicPoint-Ne Dual-Band

SonicWALL® SonicPoint-Ne Dual-Band wireless access points combine 802.11n and 802.11a/b/g wireless management with our award-winning line of firewall appliances to extend comprehensive security flexibly across wireless networks. SonicWALL lowers total cost of ownership (TCO) by enabling administrators to avoid implementing and separately managing an expensive wireless-specific solution that runs in parallel to their existing wired network.


A wide range of innovative features incorporated into the SonicWALL SonicPoint-Ne Dual-Band wireless access point provide seamless, secure wireless LAN (WLAN) connectivity as well as advanced performance, management and scalability.

Enhanced wireless reliability.
Multiple-Input Multiple-Output (MIMO) technology utilizes three external, removable antennas to enhance throughput and reliability.

Flexible deployment options.
SonicPoint-Ne Dual-Band can receive power from Ethernet and Gigabit Ethernet (GbE) cabling through an 802.3af Power over Ethernet (PoE) Injector where electrical outlets are not readily accessible. It can also be powered directly through an AC adapter. Options include either wall or ceiling mounting.

Discreet deployment.
With dimmable LEDs (excluding power) and plastic covers that can obscure both the logo and LEDs, SonicPoint-Ne Dual-Band fits perfectly into environments that need discreet wireless coverage.

Exceptional wireless performance.
Features include 40 MHz channels and packet aggregation to support data rates of up to 600 Mbps on either 2.4 GHz or 5.0 GHz networks.


Appliance Model Max. SonicPoints Supported per WLAN Zone Max. SonicPoints Supported per Appliance
TZ 100 / TZ 100w 1 1
TZ 200 / TZ 200w 2 2
TZ 210 / TZ 210w 16 16
NSA 240 16 16
NSA 2400 32 32
NSA 2400MX 32 32
NSA 3500 48 48
NSA 4500 64 64
NSA 5000 64 64
NSA E5500 96 96
NSA E6500 128 128
NSA E7500 128 128
NSA E8500 128 128
NSA E8510 128 128
